Thank you for your interest in our Brewmation 10bbl steam brewery. The listing includes the three brewing tanks, a PLC/touch screen control panel, three pumps, wort and water plumbing fittings, steam control valves, and a steam boiler. We have also included the plate chiller, fermenters,piping, taps, and regulators.

Tanks

HLT: 10 BBL 400 Gal. Steam Jacketed Hot Liquor

Tank Dimensions: 80.5”H x 53” Diameter.

• Steam

Jacketed

• Side Insulated

• Sloped bottom

• Site glass

• Recirculation port

MT: 10 BBL 375 Gal. Steam Jacketed Mash

Tun Dimensions: 100.5”H x 61” Diameter.

• Steam

Jacketed

• Insulated

• Mash Rake (Variable

Speed)

• Manways

• CIP Balls

• Wedge Wire False

Bottom

Kettle: 10 BBL 485 Gal. Steam Jacketed Brew

Kettle Dimensions: 85.5”H x 57” Diameter.

• Domed top

• Top Manway

• Side and bottom

jackets

• Coned bottom

• Tangential input for whirlpoolling

Condensate Stack: Clamps to exhaust port on brew kettle.

Helps keep steam from condensing and dripping back into the

kettle. It will drain onto the floor instead.



Boiler:

10HP low pressure steam boiler provided by the Columbia Boiler Company (Located in

Pottstown, PA)



Heating & Control System:

Steam heated system (low pressure) with the brewery steam valves connected and

controlled via the Brewmation Control Panel.

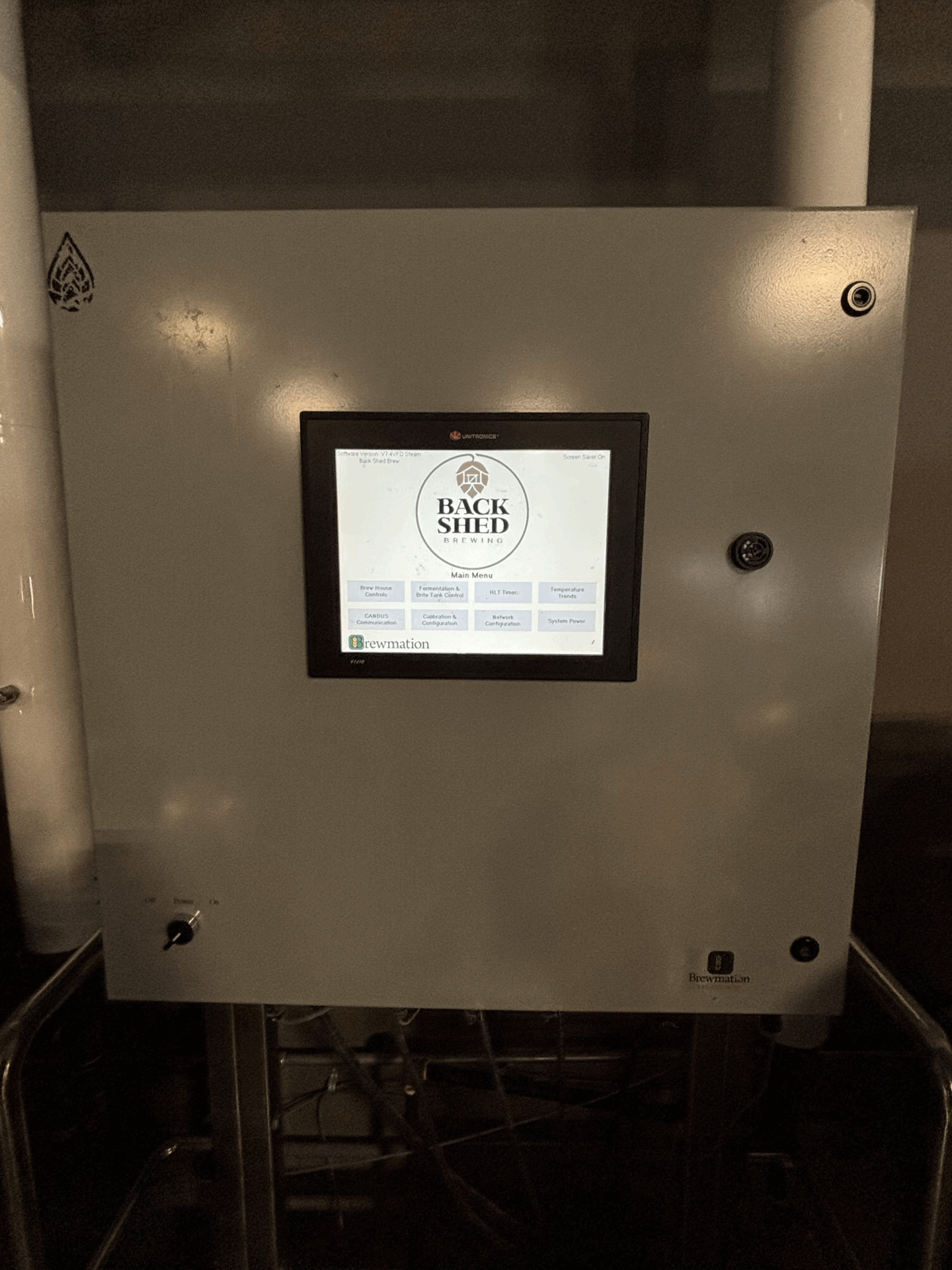

Control

Panel

• 12.1” touch screen.

• All pumps and steam zones are controlled via the touch

screen.

• Color graphic interface will also display and control

the temperatures and strike volumes.

• Interface allows you to enter and save the temperature set

points, flow volumes, flow rates, etc. System can be connected

to a local area network for remote viewing and control.

• The included flow meter is used for metering the strike water

from the HLT to the Mash Tun.

• Each tank is controlled by a motorized steam valve and can be

set as a percentage output on the touch screen to vary the heat

output to the individual tank.

• Sparge pumps and mash rake are variable

speed.

• Glycol zone controls for your jacketed tanks and chiller when paired

with advanced temperature control module.

• UL Listed as an

assembly.

Variable Position Motorized Steam

Valves:

(One each for HLT, Mash Tun &

Kettle)

Adjustable from 0-100%. The position is set by the touch screen. Having the ability to

adjust the valves position offers the ultimate in temperature control and repeatability.

Pumping System:

The brewing system consists of two pumps mounted on a channel frame and one mobile pump (cart on wheels).

Water Pump

High temperature pump for circulating the HLT wort to prevent temperature gradients. The pump is

also used for transferring water (liquor) to the mash tun for dough in phase.

Pump Type: Centrifugal magnetic Motor Type:

3/4HP TEFC (totally enclosed fan cooled) Flow

Rate: 40 GPM Maximum Temp: 220F Housing

Material: Stainless Impeller Material: Stainless

Connections: Stainless tri-clamp

Wort

Pump

High temperature wort pump for mash re-circulation and wort transfer from

the kettle.

Pump Type: Impeller magnetic Motor Type: 1/2HP

TEFC (totally enclosed fan cooled) Flow Rate: 30

GPM Maximum Temp: 220F Housing Material:

Stainless Impeller Material: Stainless

Connections: Stainless tri-clamp

Mobile cart pump on wheels: Used

for whirl pooling, pumping through the plate

chiller, and for transferring between tanks.

55 GPM at 10ft of head. (wash down motor

available. Please contact Brewmation for

pricing)

• Variable speed 3/4 hp centrifugal

pump.

• Mounted on a cart with

wheels.

• Stainless pump head with 1.5″ TC

fittings.

• Includes cart, stainless centrifugal pump head with 1.5″ TC fittings, and

VSD.

• 120V plug with 20ft cord (plugs into a standard wall outlet).

Motor Type: 0.33HP TEFC (totally enclosed fan

cooled) Max Flow Rate: 9.4 GPM Variable Speed

Maximum Temp: 220F

Platform:

100% Stainless steel construction. platform to be placed between the kettle and

mash tun for easy access. Features Panel Mount, stairs and platform with non-slip

treads.

Wort Chilling /Aerating:

Plate Chiller: Thermaline durable tie-bolt style frame line with a focus on sanitary

design, simplicity, and dependability. All frames meet or exceed FDA and 3-A

requirements. Plates can be disassembled for cleaning.

Oxygenation / Aeration Assembly: Placed at

the exit of the plate chiller for wort aeration and

oxygenation. Sanitary design.

Jacketed tank chilling and control:

Glycol Chiller:

Pro-refrigeration glycol units sized per your specific requirements. Glycol supply

for dual stage chillers, jacketed fermenters, jacketed brites, and cold rooms.

Fermentation / Brite Tank Temperature Control

Module:

Fermentation module is a separate electrical enclosure that is mounted in the

fermentation area. This enclosure will communicate back to the main touch

screen to measure and control the temperature for up to eight or twelve tanks.

Ports for the thermo-couples and glycol solenoid valves are located on the

enclosure. The enclosure plugs into a standard 120V outlet. A network cable is

used to connect the module back to the main panel.

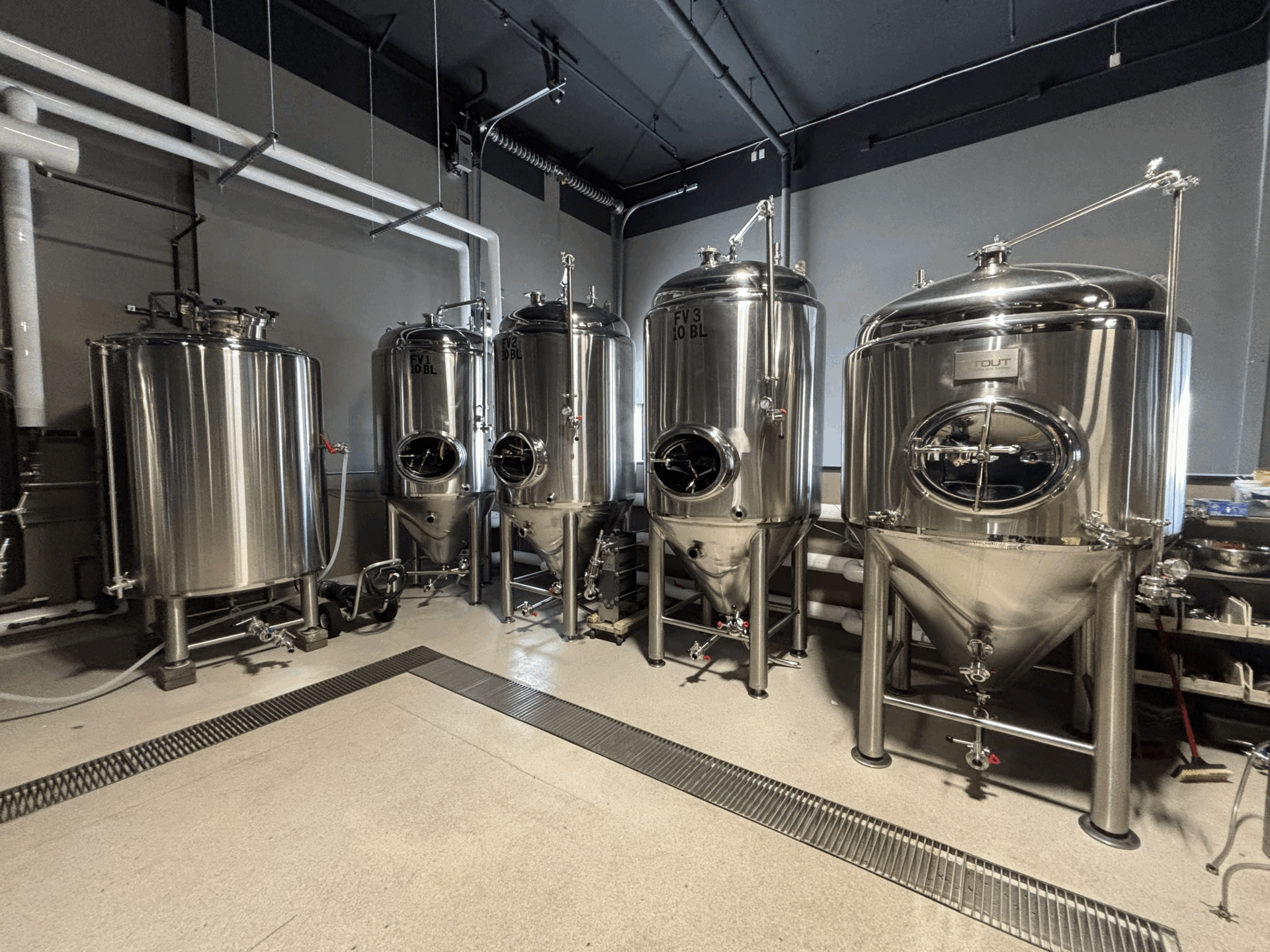

Jacketed Conical fermenters

4x – 10-BBL Jacketed Fermenter: Side Manway

388 gal. capacity 45.5″ diameter x 111″H. Rated to 15psi.

Includes: racking arm, CIP arm and spray ball, sample valve, 2

butterfly valves

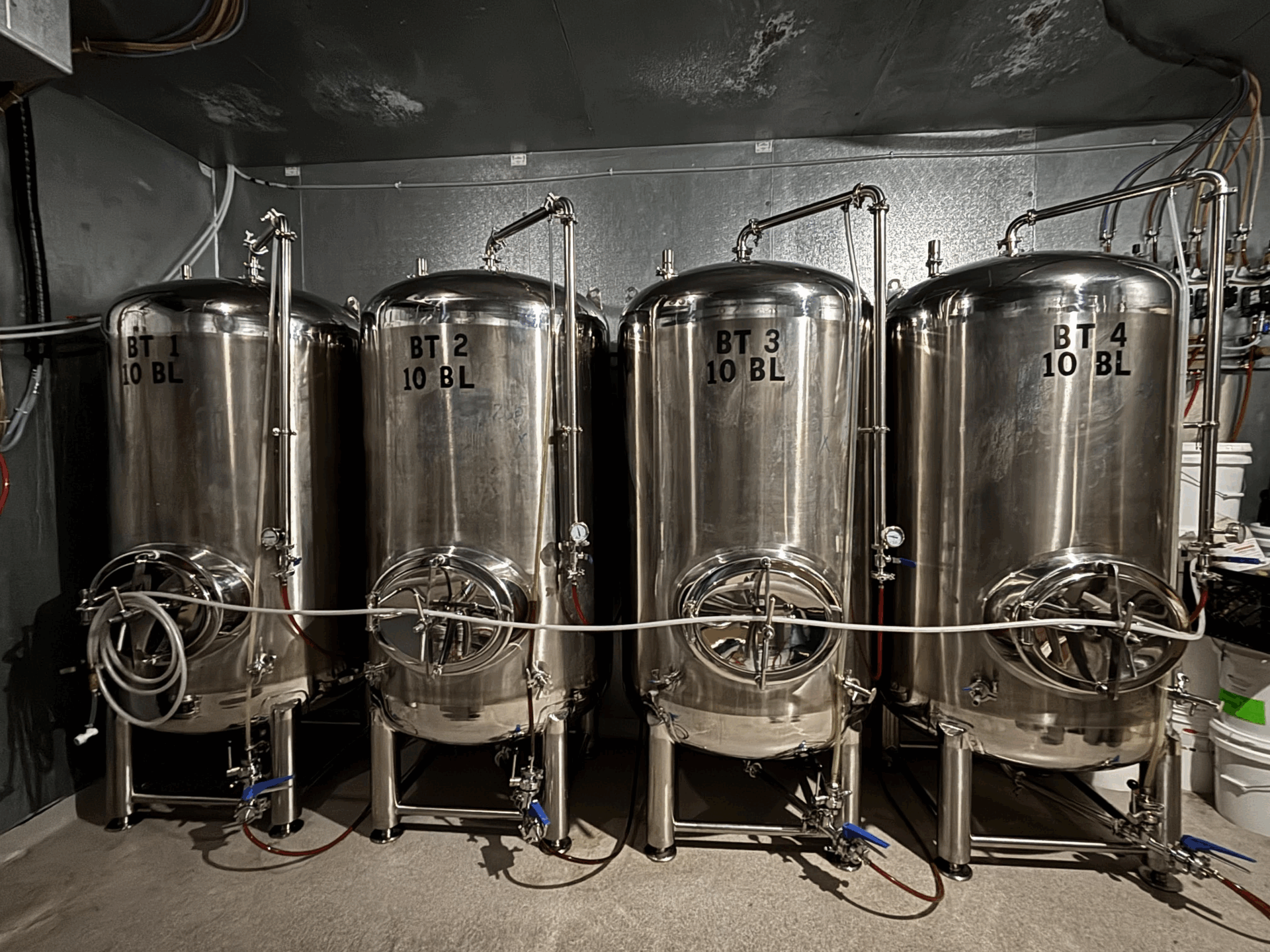

6x – 10-BBL Non-Jacketed Brite Tanks: Side

manway 360gal. Capacity: Includes: Valves, gaskets, tri-clamps,

CIP arm and spray ball, sight glass ports, carbonation stones

with quick disconnects, CO2 push disconnects

Also included: additional valves, tri-clamps, gaskets,

valves, uni-tank carbonation stones, oxygenation setup,hose,

and extra pump seal kit

Buyer must arrange removal and shipping.  We can assist with helping you find a solution to get the equipment to you.
