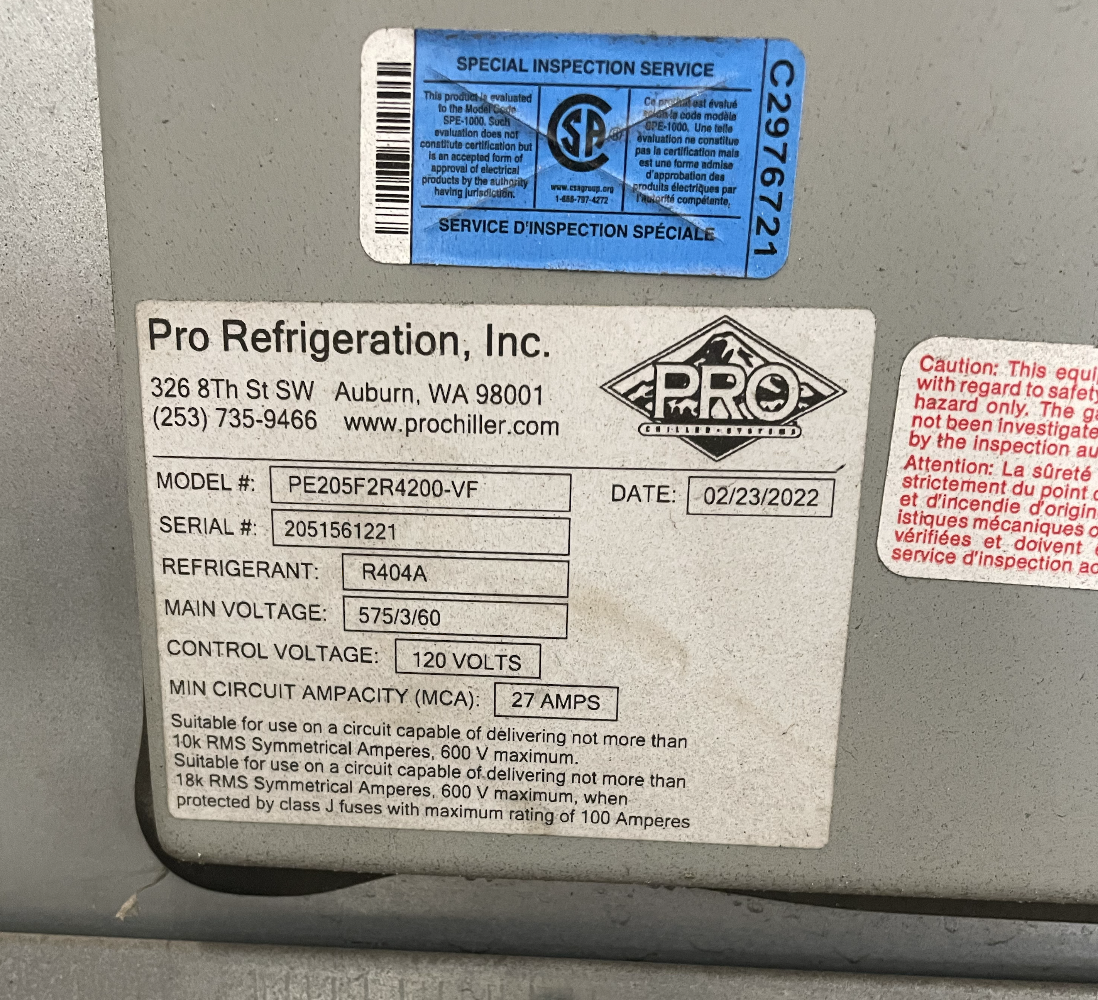

PRO CHILLER MA Series Dual 5 HP – PE205F2R4200-A-VF 200 Gallon Glycol Reservoir Included 1.5 HP Stainless Steel Process Pump Included Extreme Low Ambient Package Included PROELLIOT Hardware Included

Technical Information Cooling Capacity: BTUH @ 25 °F, 90 °F Ambient – 65600 BTUH @ 30 °F, 90 °F Ambient – 72200 BTUH @ 35 °F, 90 °F Ambient – 79200 Operating Dimensions (LxWxH Wt): 106″ x 50″ x 67″ Weight: 4100 lbs Shipping Dimensions (LxWxH Wt): 106″ x 50″ x 67″ Weight: 2400 lbs Connection Size: 2 IN Circulation Pump: 1 HP Process Pump: 1.5 HP Refrigerant: R404A

Product Description MA Series chiller systems are supplied with single or dual compressor configurations. This series also includes dual stainless steel glycol pumps and a large glycol reservoir. The glycol reservoir includes fittings to accommodate future cooling requirements. This feature allows you to start with the right chiller for you, and expand capacity as your operation requires. Key Features & Benefits Control and Monitoring – Easy to use electronic temperature control and external refrigerant pressure gauges. Efficiency – High efficiency chiller evaporator. Reliability – Independent stainless steel process and circulation pumps/ optional dual refrigeration circuits.
