BCast Stainless Fermenter – 20 BBL

620 Gallon Working Volume
SS304 construction,
Dome top & 70° cone bottom,
Dimple plate jacketed body & cone for glycol cooling; provided with non-code stamped heat transfer jacket for use up to 14.9 PSI – tested at 70 PSI,
Rated for 14.9 PSI internal pressure operation – tested at 36.9 PSI,
Polyurethane insulated,

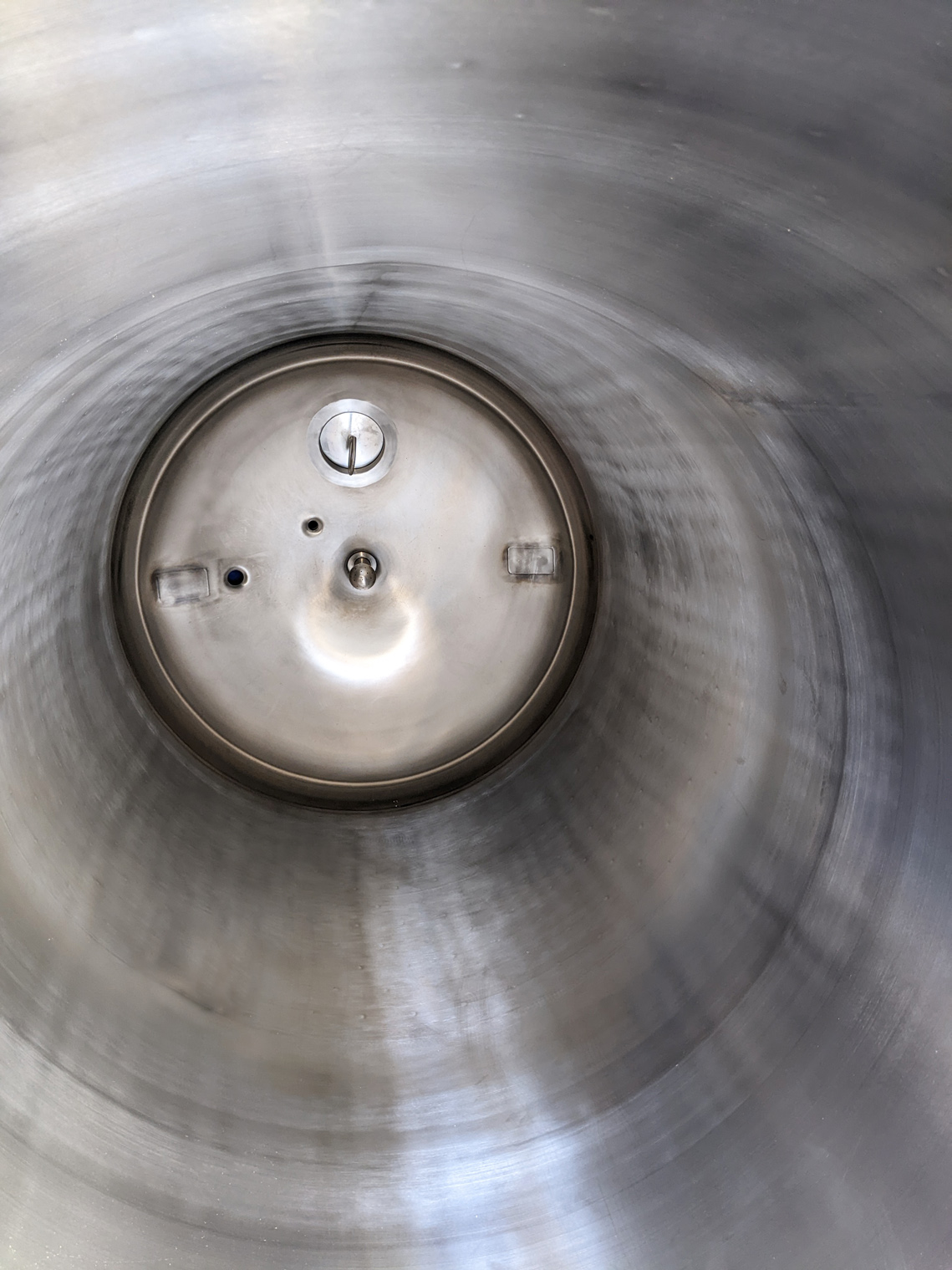

Inward & outward opening oval side manway,

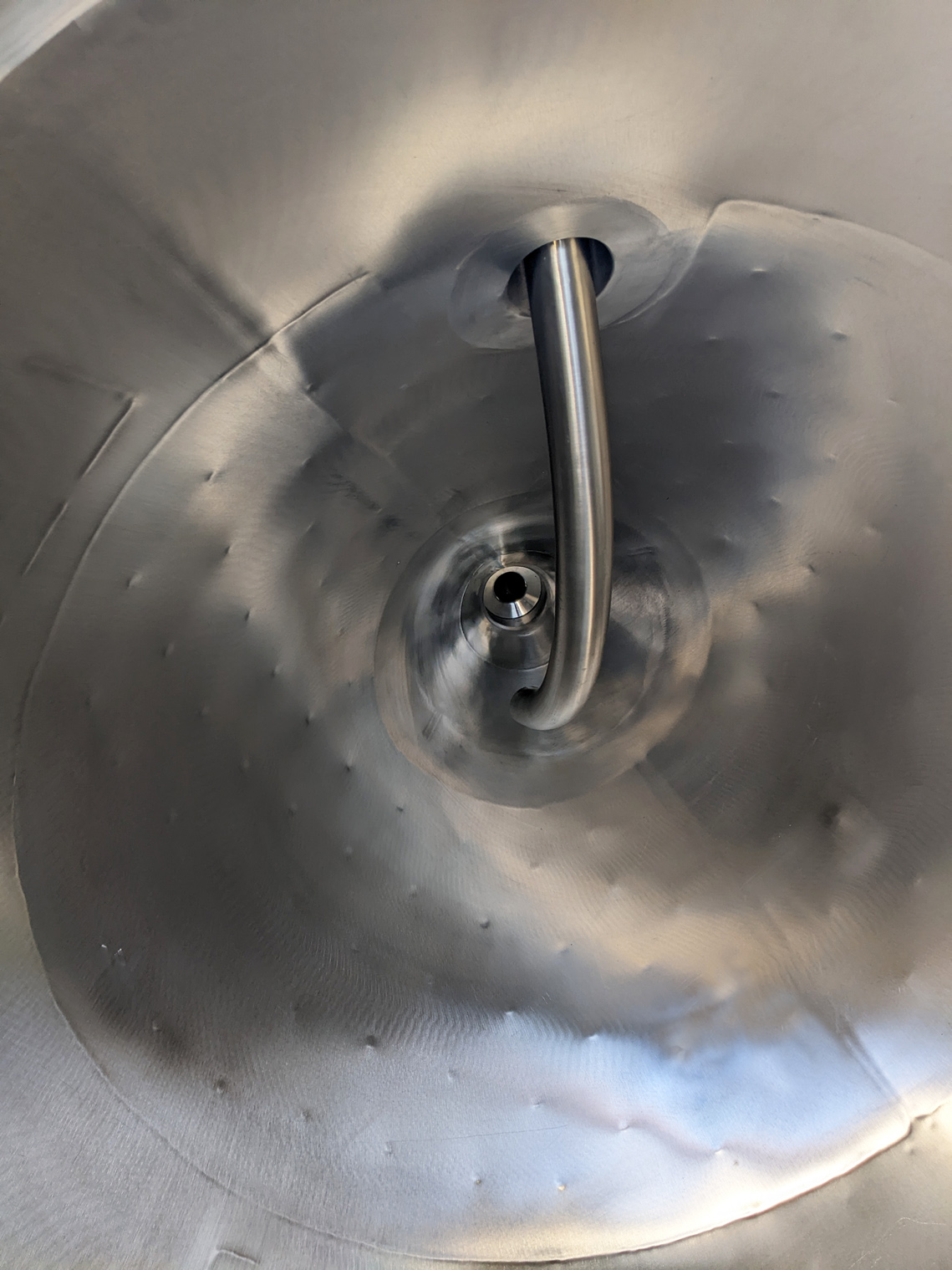

CIP sprayball w/downpipe,
Thermowell,
Sample valve port,
Pressure release/vacuum valve port,
Racking arm w/butterfly valve,
Bottom outlet w/butterfly valve,
Four adjustable SS pipe legs w/pad feet,
6″ dry-hopping port with hooked cap,
Blow-off port w/downpipe,

Dimensions: 44.25″ dia x 157.75″ oah.

2 Available!
